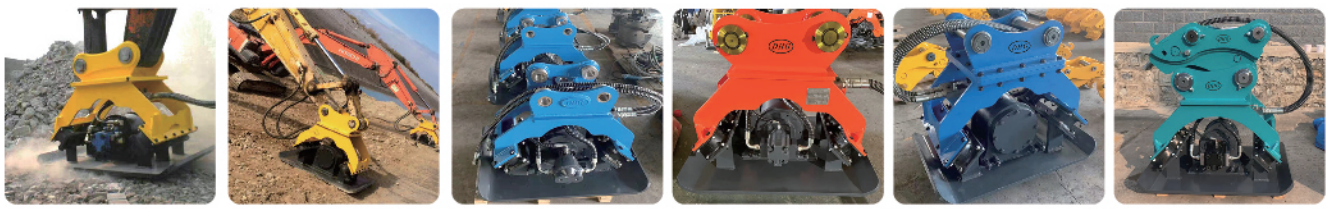

Hydraulic plate compactor

Suitable: Leveling of high way and railway slopes, roads, construction, building floors.

Product Category:

WhatsApp:+86-15966463508

Email: dhgmachinery@donghongjixie.com

Inquire Now

Description

Suitable
3.5-32 ton excavator.

Leveling of high way and railway slopes, roads, construction, building floors.

Features

1.Q355 material, high strength;

2.New design, easy operation, using the same circuitas the hydraulic breaker;

3.lmported motor, stable and reliable in use.

Product Parameters

Model	Suitable Weight	Pin Diameter	lmpact Force	lmpact Rate Max	Working Pressure	lmpact Size	Working Flow	Total Height	Total Width	Weight
Unit	T	mm	T	rpm	kg/cm²	mm²	L/min	mm	mm	kg
DHG-Mini	3-4	25/40	3	2000	100-130	590*330	30-60	435	442	200
DHG-02/04	5-9	45/55	4	2000	110-140	900*550	45-75	730	550	300
DHG-06	10-17	60/65	6.5	2000	150-170	1160*700	85-105	900	700	600
DHG-08	18-24	70/80	15	2000	160-180	1250*900	120-170	1000	900	850
DHG-10	25-32	90	15	2000	160-180	1250*900	120-170	1020	900	900
